Introduction
“Form, Fit, and Function” (FFF, or 3F) is a fundamental guiding principle when determining if one component can substitute for another. It provides a concise checklist: does the new part have the same form (physical characteristics), fit (interconnectivity and installation), and function (performance and behavior) as the original?
Only if the answer is “yes” for all three – or if deviations are negligible or manageable – can the parts be considered truly interchangeable. This article explains each FFF element in the context of electronic components and discusses common pitfalls and examples of mismatches that underscore why each aspect matters.
Form
Form: With electronic components, “form” refers to the physical attributes – the shape, size, mass, and visual appearance parameters of the part. Essentially, it’s the geometry. Does the component look the same and occupy the same volume or footprint?
Key considerations for form include:
-
Package type and outline dimensions (length, width, height)
-
Lead or pad geometry
-
Orientation
If two components differ in form, they may not physically fit in the same space (which crosses into the second F, fit).
A subtle form difference example: two DIP-14 ICs from different manufacturers might have identical pin spacing and count, but one has a slightly wider body or taller profile. If the DIP is going into a socket or a space-constrained area, a taller profile might conflict with a nearby component or enclosure.
Another example: electrolytic capacitors often have standard can diameters (e.g., 8 mm) – replacing one with a larger diameter can might not fit the PCB hole spacing or could bump into adjacent components. Thus, maintaining the same form factor is usually mandatory for a drop-in replacement.
Even within standardized package names, the engineer must ensure that any variation (like tolerance of dimensions) won’t cause a form issue. If the original had a low-profile package and the replacement is higher, it might violate a height restriction (common in products like laptops or smartphones).
Likewise, if a replacement connector has a mirror-image orientation (e.g., a right-angle connector that faces the opposite direction), that’s a form difference that clearly disqualifies it.
Fit
Fit is about the part’s ability to interface with the surrounding system – how it connects or mates with other parts including the PCB. If form is the static dimension, fit is more about the dynamic or relational dimension: does it plug in the same way?
For electronic components on a board, “fit” usually means the PCB footprint compatibility and alignment with any sockets or board layout.
For example, an IC’s “fit” is correct if it has the same pin pitch and arrangement such that it solder onto the same pads, or it can plug into the same socket.
For a connector, “fit” includes whether the mating connector can still connect properly – a replacement jack must allow the existing plug to insert and make contact in the same way.
Mismatches in fit are a common source of cross-reference failure. Consider a scenario where an engineer tries to replace a particular model of a USB Type-C receptacle with another to alleviate supply issues. If the new receptacle’s mounting tabs or the shape of the plastic insulator is slightly different, it might not fit the cutout in the device’s chassis, or the PCB footprints might not line up exactly – leading to mechanical stress or an impossible assembly. Thus, even though “USB-C receptacle” is a standard interface, the fit at the PCB and chassis level might not match – violating the fit criterion even if form (general shape) and function (electrical connectivity for USB signals) are fine.
Another aspect of fit is interface compatibility. For instance, if cross-referencing an RF coax connector from one brand to another, one must check that the thread type or coupling mechanism is identical (an SMA connector has both standard and reverse-polarity forms – using the wrong one would prevent mating).
Fit also concerns things like pin compatibility: a replacement IC might have the same number of pins but if one of those pins has a different function or is not internally connected the same way, it might not “fit” logically into the circuit, even if it solder fits physically. This overlaps with function, but it’s about fitting into the circuit design.
Engineers often speak of “pin-to-pin compatible” replacements – meaning you can place the new chip in the same footprint and every pin will connect to a corresponding signal of the same nature. If, say, pin 5 was an active-low chip enable on the original and pin 5 is a no-connect on the new chip, that’s a fit/function mismatch that could be disastrous (the new chip might be permanently enabled or disabled unexpectedly).
A concrete mismatch example: Suppose we try to replace a memory IC (like a NAND flash) with another from a different vendor. They might both be 48‑pin BGA devices of the same form and even advertise the same function (same storage size). However, if the ball assignment differs (e.g., ball C4 on one chip is I/O line 7, while on the other it’s Vcc), then the second chip does not fit the PCB wiring – connecting it would wire power to a data line, obviously not acceptable. This is why memory and microcontroller cross-references require checking manufacturer datasheet pinouts thoroughly; many have similar but not identical pin arrangements.

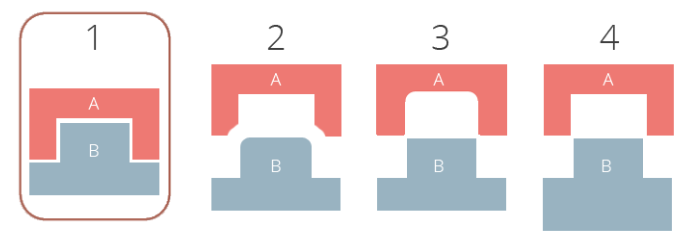

Consider these examples:
Example one is a fit, the others would fail for fit. Examples 2 and 3 have mis-matched corners, and in example 4 the base of B is too high.
Function
Function encompasses the operational characteristics and performance of the component – what it does in the circuit and how it behaves. Ensuring functional equivalence is often the most complex part of cross-referencing, especially for active components.
A functional check means verifying the substitute can perform all the required tasks of the original, under all operating conditions, without adverse effect on the system. This includes both primary functionality (e.g., an op amp amplifies with a certain gain bandwidth, a logic gate implements the same boolean logic) and secondary functionality (e.g., startup behavior, protection features, response to faults).
It’s relatively straightforward for simple components: the function of a 1 kΩ resistor is just to provide resistance – any 1 kΩ resistor of proper power rating will function identically in theory. But for complex parts, function goes beyond basic specs.
For instance, two DC-DC converter modules might both output 5 V at 2 A (function at a top level), but one might have different transient response or require different external components for stability – if swapped without adjusting those, the circuit could oscillate or have higher output ripple, thus failing the functional equivalence in a subtle way.
An alternate microcontroller may have the same CPU core and peripherals (functionally similar), but different timing on its bootloader or different internal oscillator accuracy, which could affect the product if not accounted for.
Publications often define function in FFF as the part’s ability “to perform its intended purpose as effectively as or exceeding the original part’s capability”.
So, a functional mismatch means the alternate cannot meet some aspect of performance the original did, or it lacks a feature.
Cross referencing without checking function could lead to, say, using a drop-in microcontroller that has the same pinout but maybe its ADC is 8-bit instead of 12-bit, thus poorer resolution – if the design needed the higher resolution, functionality is compromised.
To illustrate a function mismatch scenario, consider analog sensors. Suppose we have a temperature sensor IC that outputs an analog voltage proportional to temperature. If it’s replaced with another that also outputs analog voltage, one might assume they’re functionally the same. But if the scaling differs (10 mV/°C vs. 19.5 mV/°C for different sensors) or the output impedance differs, the reading circuit may get a different interpretation or might need recalibration – the function (providing correct temperature reading to system) is not equivalent without circuit changes. That would violate a strict drop-in replacement criterion, since design adjustments would be needed.
Even more subtle are dynamic function characteristics: like loop stability for regulators, EMI (electromagnetic interference) performance, or timing under specific conditions.
For a digital logic replacement, one must consider propagation delay and drive strength – in a high-speed design, a logic buffer with slower edges might cause timing failures even if logically it eventually settles to correct levels.
A concrete example from a case study on switches: A commercial vehicle manufacturer replaced a cost-escalating switch with a second-source alternative, ensuring it “matched the original switch in terms of fit, form, and function”. They meticulously matched specifications like the pressure rating (for a pressure switch) or current handling, ensuring identical functionality. As a result, the alternate provided the same performance in the vehicle, just at lower cost and with better supply stability. If, hypothetically, the switch had a slightly different actuation force or response time, it might have failed functionally in the system (for instance, not triggering at the exact needed pressure). This underscores that functional equivalence often requires looking at detailed performance curves or test results, not just datasheet headlines.
Summary of FFF Mismatches
Form mismatch: New part doesn’t physically fit the board or product (wrong package, size, or orientation). Example: a taller component preventing enclosure closure, or a different footprint causing mounting issues.
Fit mismatch: New part cannot interface with existing system connections (different pinout, mating issues). Example: connector keying differences, or an IC with same package but different pin assignments.
Function mismatch: New part doesn’t perform to the required level or behaves differently in operation. Example: regulator that maintains 5 V output but has double the output noise, thus causing system noise issues; or a component lacking a needed feature like power-on reset circuit.
FFF Applications
It’s useful to differentiate drop-in replacements vs. FFF alternates vs. merely similar components. In industry terminology, a “drop-in replacement” implies virtually identical FFF – you can swap the parts with zero changes and zero performance impact.
An FFF alternate might require some configuration or minor design tweaks to function equivalently (perhaps a board jumper or software change, but no major PCB change). A merely “equivalent” component might have the same electrical specs but in a different package or with extra features that need disabling – potentially needing small redesign efforts. Understanding this spectrum helps engineers decide how stringent the cross-reference needs to be. In high-volume manufacturing or field replacements, a true drop-in is usually desired.
One particularly challenging scenario is specialized ICs (like a proprietary ASIC or a very specific microcontroller). These often cannot be replaced without some redesign – which essentially means you cannot meet FFF exactly and must update the design (new PCB layout or code changes).
As a rule of thumb, the more specialized a component, the less likely a perfect FFF replacement exists. For highly integrated parts like DDR memory modules with unique footprints, replacing them would require a broad redesign for any FFF alternate. In other words, FFF compatibility sometimes hits a wall, and redesign (thus breaking FFF) is the only path – albeit an undesirable one except as a last resort.
Conclusion
Verifying Form, Fit, and Function is a holistic test for any cross-reference part. It requires careful review of datasheets, physical measurements if necessary, and often testing the part in the actual application to ensure nothing was overlooked. Examples of mismatches show that even tiny differences can be crucial (like a single pin or a few millimeters of size).
Therefore, the FFF framework acts as a safeguard: only if a candidate passes all three categories do we proceed to qualification and use.
