Expert Guide on How to Cross-Reference Electronic Components.

Introduction

Cross-referencing in the context of electronic components refers to the process of identifying alternative parts that can perform the same role as a target component in an electrical or electronic system. It plays a vital role in ensuring continuity, design flexibility, and resilience within manufacturing and supply chain operations. While the practice is often seen as a simple lookup for compatible parts, its real-world application spans a diverse range of needs and scenarios from cost optimization to risk mitigation and lifecycle support.

This article aims to provide a structured overview of how cross-referencing should be approached, emphasizing the need to align substitution decisions with the user’s intent. To that end, we will review the foundational concepts that underpin compatibility, define categories of intent that drive cross-referencing, and offer guidance for evaluating potential substitutes in technical and operational contexts.

Form-Fit-Function: History and Foundations

Historical Origin of Form-Fit-Function

The Form-Fit-Function (FFF) framework was originally developed within the U.S. military to standardize the management of parts and configurations in mission-critical systems. This model provided a structured means to control engineering changes and ensure operational consistency across various platforms and suppliers. Its adoption quickly expanded into aerospace, defense contracting, and later into commercial electronics.

Definition of FFF

From ASME Y14.100 (Engineering Drawing Practices), Appendix A:

• Form: “The configuration, including dimensions, mass, weight, and other visual parameters that uniquely characterize an item.”

• Fit: “The ability of an item to physically interface with, connect to, or become an integral part of another item.”

• Function: “The action(s) or purpose(s) that an item is designed to perform.”

The concept of FFF is formally embedded in multiple regulatory and procurement frameworks:

• MIL-STD-973 (Configuration Management) historically required contractors to document FFF attributes when submitting an Engineering Change Proposal (ECP). Although MIL-STD-973 has been retired, its principles remain influential.

• DoDI 5000.88 mandates system-level configuration control in defense acquisition programs, where replacement parts must conform to specified FFF to avoid unintended consequences.

• Federal Acquisition Regulation (FAR) Subpart 46.2 requires that supplies conform to contract specifications, which often invoke FFF as the benchmark for acceptance.

• ASME Y14.100 and MIL-STD-31000 provide standards for technical data packages (TDPs), which must define FFF characteristics when applicable.

Detailed Characteristics of Form-Fit-Function

Form

• Refers to the shape, size, dimensions, mass, and visual appearance of a part.

• Includes physical parameters such as the external outline, packaging type, and the height profile of the component.

• Determines how the part interacts spatially with other components in the system, especially in high-density layouts.

• Example: Two DIP-14 ICs from different manufacturers might have identical pin spacing and count, but one has a slightly wider body or taller profile. If the DIP is going into a socket or a space-constrained area, a taller profile might conflict with a nearby component or enclosure**.**

Fit

• Fit is about the part’s ability to interface with the surrounding system. How it connects or mates with other parts, whether on the PCB or mechanically. For electronic components on a board, “fit” typically means the PCB footprint compatibility and alignment with any sockets or board layout.

• Also includes insertion orientation and alignment constraints.

• Example: A board-to-board connector with 20 pins and a proprietary latch may be replaced only if the alternate fits the same header with matching pin mapping and locking features.

Function

• Refers to what the component does or performs: its electrical behavior, output, performance parameters.

• Includes electrical characteristics like voltage ratings, speed, impedance, logic levels, and feature set.

• Also includes control protocols, thermal behavior, and embedded features like programmable memory or safety protections.

• Example: A 5V ±2% voltage regulator with 1A current output and a dropout voltage under 0.4V performs the same function as another regulator with identical output specs, even if its form and fit differ.

Compatibility Types 

Compatibility types are all derived from or framed in terms of the FFF model. Whether an alternate part can be substituted without a redesign depends on how it conforms to FFF.

Drop-in Replacement

This type meets all aspects of Form, Fit, and Function. It requires no modifications to the system and is fully interchangeable. It is ideal for urgent procurement scenarios and automated substitution workflows.

Pin-to-Pin Compatible

Such components share the same package and pin layout, allowing for mechanical replacement. However, they may differ in function or performance, requiring validation of electrical and behavioral parameters. Pin-to-pin substitutes are commonly used where layout changes are impractical, but function needs to be evaluated.

Functionally Equivalent

These components perform the same function but may vary in form or fit. Substituting them typically requires design modifications and revalidation. They offer value in redesigns or upgrades but carry higher engineering effort.

Technical Evaluation Considerations

Compatibility should be evaluated across:

• Electrical: voltage, current, timing, impedance

• Mechanical: dimensions, mounting, thermal performance

• Environmental: temperature range, vibration, moisture

• Software/firmware: register maps, interfaces, protocols

Table 1: Compatibility Type FFF Matrix

Compatibility Type	Form	Fit	Function
Drop-in Replacement	✅	✅	✅
Pin-to-Pin Compatible	✅	✅	🔶 (must be verified)
Functionally Equivalent	🔶 (may differ)	🔶 (may differ)	✅

Cross-Referencing Intent

Not all cross-referencing efforts are the same. The user’s intent behind finding a substitute dramatically affects the selection criteria, acceptable tradeoffs, and required documentation. We define six cross-referencing “Intent Categories,” each associated with a different primary use case:

Production Continuity

Refers to ensuring uninterrupted manufacturing by quickly sourcing alternate parts. Typically demands drop-in replacements or previously qualified FFF parts to avoid production delays.

• Triggered by sourcing difficulties, such as long lead times or part obsolescence.

• Focuses on available stock and lead time.

• May tolerate small variations if risk is documented and approved.

Supply Chain Resilience

Focuses on building flexibility into sourcing strategies by pre-identifying substitutes and sourcing from multiple vendors. Helps mitigate risks like geopolitical disruptions, factory shutdowns, and raw material shortages.

• Focused on ensuring continuity over long-term production runs.

• Anticipates and manages EOL (end-of-life) events.

• May involve proactive qualification of alternates.

Obsolescence Management

Addresses the challenge of discontinued parts by identifying FFF or pin-to-pin compatible components that can replace legacy items with minimal redesign.

• Primary focus is immediate availability

• Secondary focus is predictive lifecycle, i.e. years to obsolescence.

• Consideration is often given to creative workarounds like interposers or workmanship exceptions for parts with minor footprint mismatches.

Design for Multi-Sourcing

Enables engineers to explore long-term availability during the development phase. Functionally equivalent parts are often considered here as redesign is acceptable.

• Substitutes are built into the initial design phase to avoid single-source risk.

• Often involves selecting components with multiple vendors or drop-in replacements.

• Accepts minor differences if pre-qualified.

Value Engineering and Cost Reduction

Aims to lower the bill of materials (BOM) costs by identifying cheaper but compatible components. Engineers may accept minor performance variations if system-level specifications are met.

• Collaborative effort between engineering and procurement.

• Aligns component selection with strategic partnerships.

• Evaluation based on cost savings vs implementation cost.

Repair and Field Replacement

Focuses on finding practical alternatives that allow in-field or service-level fixes. While FFF is ideal, field technicians may accept looser matches (e.g., pin-to-pin) for legacy equipment.

• Aimed at replacing failed or damaged parts in existing equipment.

• Compatibility with the original system is critical.

• Often constrained by available tools and quick turnaround needs.

Inventory Optimization

Intended to consolidate inventory and reduce SKU counts. Organizations evaluate functionally similar or pin-compatible parts to streamline procurement, reduce holding costs, and improve purchasing leverage.

• Often driven by excess stock of one part and desire to consume it in place of similar parts.

• Consolidates demand to improve purchasing leverage.

• FFF equivalence must be verified post-hoc.

Alignment of Cross-Referencing Intent with Compatibility Type

Different intents require different levels of compatibility. For example:

• Production Continuity → Drop-in

• Design Flexibility → Functionally Equivalent

• Obsolescence Management → FFF or Pin-to-Pin

A compatibility-intent matrix helps teams align substitution decisions to their business priorities. Visualizing these relationships aids in creating internal guidelines and sourcing policies.

Table 2: Cross-Referencing Intent by Compatibility Type

Intent	Primary User	Main Concern	Difficulty	Compatibility Type
Production Continuity	Buyers, sustaining engineers	Availability, cost	Low	🟢 Drop in
Supply Chain Resilience	Buyers	Multiple sources, lead time, lifecycle	Low	🟢 Drop in
Obsolescence Management	Sustaining engineers	Lifecycle, availability	Medium to High	🔵 Pin-to-pin
Design For Multi-Source	R&D, designers	Performance, options	High	🟡 Functional
Value Engineering	Cost analysts, sourcing	Cost savings	Medium	🟡 Functional
Repair and Field Replacement	Technicians, field ops	Urgency, improvisation	Medium	🔵 Pin-to-pin
Inventory Optimization	Materials management	SKU consolidation	Low	🟢 Drop in

Understanding Key Parameters

While datasheets often contain hundreds of parameters, in practice only a subset are typically considered key parameters for cross-referencing purposes. These are the specifications most directly tied to functional equivalence and physical compatibility. Identifying which parameters are truly critical, versus those that may be optional or application-specific, helps streamline the evaluation process and avoid overengineering or unnecessary disqualification of acceptable alternates. This structured approach ensures visibility into tradeoffs and supports qualified decisions.

When attempting to cross-reference an electronic component, one must create a specification profile of the original part to match against potential substitutes. These specifications can be grouped into several categories: electrical parameters, mechanical parameters, environmental ratings, and regulatory/compliance parameters.

A reliable cross-reference can only be found by comparing the candidate part against the original across all key parameters; a process often summarized in a matrix of requirements. Missing any one category could result in a part that is technically “similar” but ultimately unsuitable (for example, an alternate IC that functions electrically but doesn’t meet safety certifications or doesn’t fit the PCB footprint).

In this section, we detail each parameter category and how it factors into cross-referencing decisions:

1. Electrical Parameters: These define the component’s behavior in the circuit. For passive components, key parameters include nominal value (resistance, capacitance, inductance), tolerance, rated voltage, power or current rating, and frequency characteristics. For active components, this expands to include supply voltage and current, logic levels, I/O impedance, gain, bandwidth, noise, timing, output power, and more. Electrical parameters are non-negotiable, substitutes must meet or exceed critical specs. For instance, a MOSFET with 60 V V_DS and 50 mΩ R_DS(on) should be matched or improved upon. A structured method is to compare datasheets in a matrix of voltage, current, frequency, power, etc.

2. Mechanical Parameters: These refer to physical attributes like package type, dimensions, pin count, pitch, and layout. Mounting method (SMD, through-hole, panel mount) must also match. Footprint compatibility is key for PCB-mounted parts. Variation in pad layout or lead length can make even nominally identical packages incompatible. For electromechanical parts like connectors, this includes interface type, locking features, and orientation. Engineers often refer to JEDEC outlines and datasheet drawings to validate mechanical fit.

3. Environmental and Reliability Parameters: These include operating/storage temperature ranges, humidity, shock/vibration tolerance, thermal resistance, and MTBF/FIT data. For harsh environments (automotive, aerospace, industrial), grades like AEC-Q100/200, MIL-PRF, or MIL-STD ratings are critical. For example, replacing a -40 °C to +125 °C component with one rated only for 0 °C to 70 °C could cause field failures. Other considerations include ESD ratings, surge handling, and capacitor life at rated temps.

4. Regulatory and Compliance Parameters: These encompass RoHS and REACH compliance, UL or CSA certifications, CE/FCC markings, and industry-specific approvals (e.g., ISO 13485, AS9100). Lack of the correct certifications may render a part unusable in the final product, even if technically functional. Components affecting safety or signal emission require special scrutiny. Additionally, compliance with processes like PPAP in automotive contexts may demand further documentation and part validation.

A thorough awareness of all key parameters across original and candidate components is essential. This structured approach ensures visibility into tradeoffs and supports qualified decisions.

Sources to identify Key Parameters

The best sources for parametric data are distributors and aggregators because both provide information from multiple original component manufacturers (OCM). A problem is most sources provide too much parametric data and therefore do not isolate the key parameters. Using Kemet part number C1206C104K5RACTU we reviewed the following cites for identification of key parameters:

• DigiKey Good data, no key parameters

• Mouser Good data, no key parameters

• Arrow Good data, no key parameters

• Avnet Too little data, no key parameters

• Findchips Too much data (and hard to locate), no

• TrustedParts Excellent key parameters

• Octopart Excellent key parameters

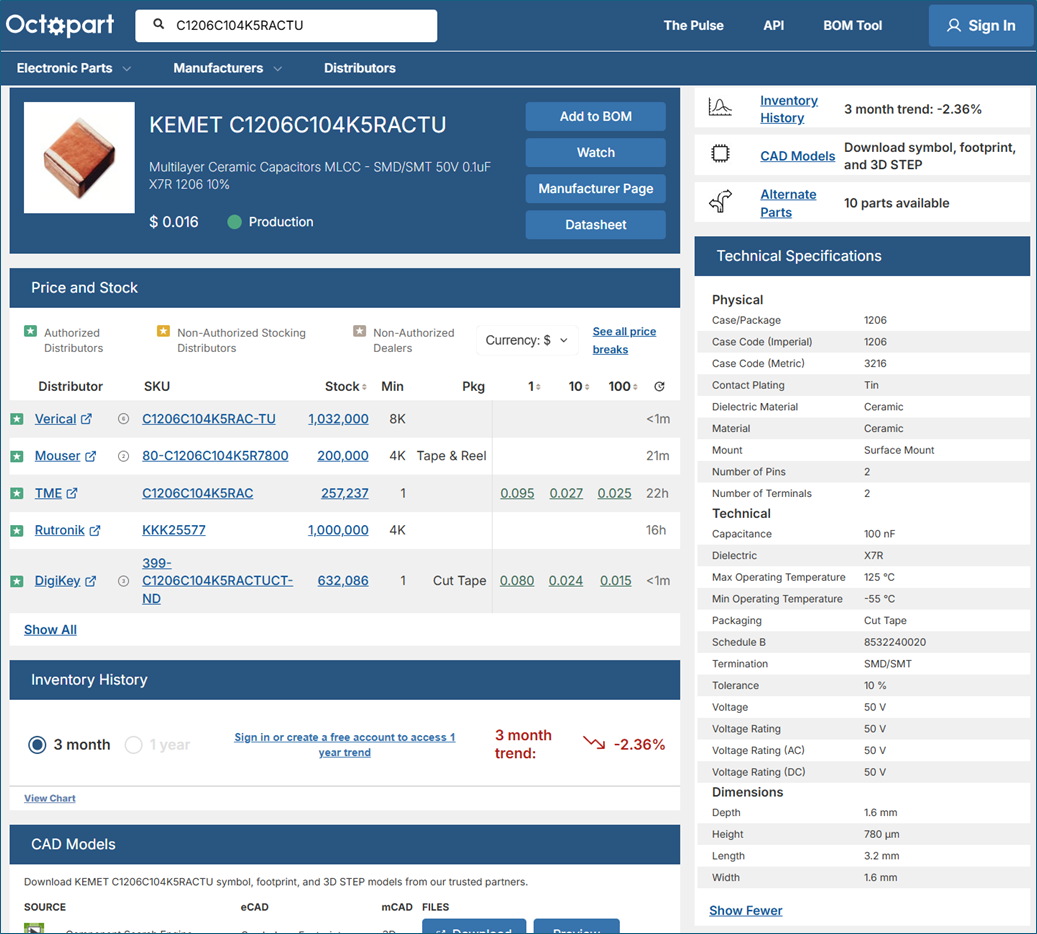

Here is a screenshot from Octopart to exemplify what you are looking for:

Cross-Referencing Methodologies

Cross-referencing components can be approached in many ways. Each has its place depending on the cross-referencing intent, compatibility type, complexity of the component, and available resources. This section explores these methods and highlights supporting tools and techniques.

Manual Cross-Referencing

Manual methods start with defining the target component’s key specifications, then searching for parts with similar characteristics. Engineers might use printed or digital catalogs to browse families of components, applying their judgment to determine equivalence.

Key manual techniques include:

• Line-by-line datasheet comparisons

• Printed cross-reference guides by manufacturers (e.g., Kemet, Analog Devices)

• Supplier application engineers

Manual methods are especially effective for:

• Common or generic parts (e.g., 100 kΩ 5% 0805 resistor)

• Niche, legacy, or obsolete parts where database support is lacking

• Engineering teams with well-maintained internal equivalence libraries

Limitations:

• Labor-intensive

• Prone to human error

• Less scalable for large BOMs or urgent timelines

Vendor Cross-Referencing

Vendor cross-referencing is outsourcing the task to your supplier partners. This is just as laborious and time-consuming for them as it is for you, so their enthusiasm for the task reflects your relationship.

• OCMs will cross reference to their alternates.

• Manufacturer Reps will cross reference to OCMs on their line card.

• Distributors will cross reference to their franchised lines.

Be aware a vendor that conducts cross-referencing will have a strong expectation that their parts will be qualified. Depending on the number of parts you give them, expect a 1–2-week turnaround.

Distributor Parametric Search Tools

• Requires prior identification of key parameters. Example search: “ceramic capacitor 10v 0.1uf X7R 1206”.

• Distributors offering parametric search: Mouser, Arrow, Newark, Future.

• DigiKey and Avnet do not have parametric search.

• Some tools also suggest similar parts (see below).

Manufacturer Cross-References

• Many OCMs offer cross-referencing, almost all are not very good. The best we have observed is Kemet.

• Translate a competitor’s MPN to a vendor equivalent.

• Useful for second-sourcing parts to a preferred manufacturer.

3rd Party Cross-References

• The Big 3:

  • Accuris (IHS)

  • Silicon Expert (SE)

  • Z2Data (Z2)

• All provide cross-references as just one part of a suite of component data services.

• All are paid only, pricing models vary but expect to pay in the range of $1.00 per MPN per year, minimum contracts in the range of $10,000/year.

• Highly recommended for mid-to-large size OEMs and all EMS.

Distributor Cross-References

• DigiKey Cross Reference Tool is the only true cross-reference tool offered by a distributor.

• DigiKey results are limited to franchised lines.

• All other distributors provide alternate or ‘similar part’ data they source from Accuris or SE or Z2.

Aggregator Cross-References

• Octopart, Findchips, TrustedParts, etc.

• No aggregator conducts their own cross-referencing.

• All aggregators provide alternate or similar part data they source from Accuris or SE or Z2.

• Results are not limited to franchised lines.

Dedicated Cross-Reference Search Engines

• X-Refs is the only free site dedicated to cross-referencing electronic components.

• Uses artificial intelligence to conduct organic search of all known components to seek a match.

• Does not rely on any 3^rd party cross-reference databases.

• Provides summary of any parametric differences.

• Shows real time stock from all distributors.

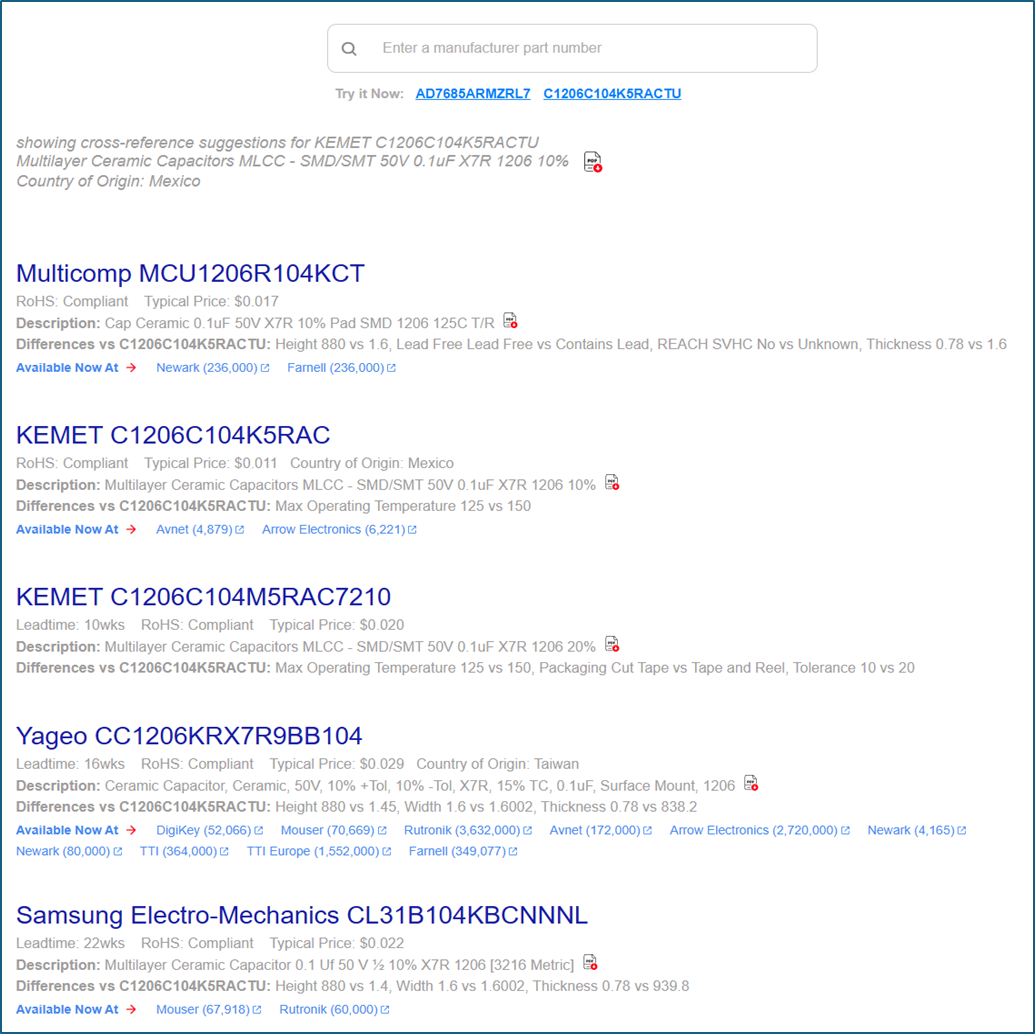

Example results from X-Refs:

Counterfeit Risk and Compliance Considerations

While not strictly part of cross referencing, counterfeit risk is a constant concern especially if the part in question is desperately needed to maintain production schedules. We mention it here very briefly.

Defense and Industry Standards

Recent updates to U.S. defense standards (e.g., DoDI 4140.67) and contractual clauses (DFARS 252.246-7007) require suppliers to implement counterfeit prevention systems. SAE AS6081A offers guidelines for part authentication among independent distributors.

Importance of Traceability

Cross-referencing should always consider sourcing channels. Traceable, authorized distribution channels are your best defense against counterfeits.

Impact on Reliability and Policy

Counterfeit components pose risks not only to product function but to safety and liability. Organizations must adopt policies that prevent unauthorized substitutions, even when parts appear technically compatible.

Integrating Verification

Cross-referencing workflows should include authentication checks, source validation, and inspection protocols—especially in regulated industries.

Recommendations for Cross-Referencing Evaluation

• Standardized Definitions: Use consistent terminology (e.g., FFF, drop-in) across engineering and sourcing teams.

• Assess Intent First: Ask why the part is being cross-referenced: cost, continuity, redesign?

• Document Acceptance Criteria: Record what differences are tolerable and what must be preserved.

• Risk Management: Evaluate electrical and regulatory risk in substituting parts.

• Use Tools and Databases: Leverage software tools to automate compatibility filtering.

Conclusion

Cross-referencing is more than finding a part that “fits.” It is a strategic activity that must be grounded in a clear understanding of compatibility and aligned with specific organizational goals. Whether the objective is maintaining production, reducing costs, or extending the life of a legacy product, the correct substitution depends on understanding both the technical constraints and the intent behind the replacement.

Using structured compatibility models, evaluating risk, and incorporating verification standards ensures that component substitutions are reliable, efficient, and compliant. Tools like X-Refs can further streamline this process by mapping user intent to compatibility constraints and delivering vetted alternatives backed by real-time supply data.
